| Parameter/ Personalized setting | Particular configuration | |||
| Airflow (m3/h) | 15000 | |||
| Air outlet direction | Side | Sunshine resist PP machine cover ( 100%new material) |  |
|
| Engineering noise (dB) | ≤ 69 | BLDC motor | |
|
| Operating range (°C) | -20~55 | 3 nylon fan blades | |
|
| Voltage/frequency (V/Hz) | 220/50 | 5090 high effect cooling pads (3 sides air inlet) | |
|
| Power (kW) | 0.6 | 175L plastic water tank/Embedded water gauge | |
|
| Current ( A ) | 2.6 | PVC water pipe | |
|
| Controller/air volume mode | Digital touch panel/remote control/50-speed | Open type water diversion plate | |
|
| Body length/width/height | 1060*650*1670 | Flame retardant electrical box | |
|
| Packaging Size (mm ) | 1075*670*1580 | 50 speed inverter(seal) | |
|
| Outlet Size (L*H) (mm) | 685*645 | Digital touch panel | |
|
| Air supply distance (m) | 18 | Left and right electric swing air outlet(manual up and down) | |
|
| Storage tank volume (L) | 175 | 10m remote control | |
|
| Evaporation rate (%) | ~92 | Manual water inlet | |
|
| Refrigeration setting | |
Motor limit electric current protection | |
|
| Ventilation setting | |
Water shortage protection of circulating water pump | |
|
| Temperature Display | |
Over temperature protection of circulating water pump | |
|
| 1-8 Hours time shut down | |
5m national standard power supply wire | |
|
| Fault code prompt | |
Rocker type water sensor | |
|
| Input overvoltage prompt | |
Floating water inlet valve | |
|
| Incoming call automatic recovery |  |
Ceramic shaft circulating water pump | |
|
| UV sterilization | after cooling | All stainless steel screws (fasteners) | |
|
| Fan protection steel mesh | |
|||
| PP dustproof net | |
|||
| 4 inch rotating caster with brake | |
|||
| UV water processor (optional) | |

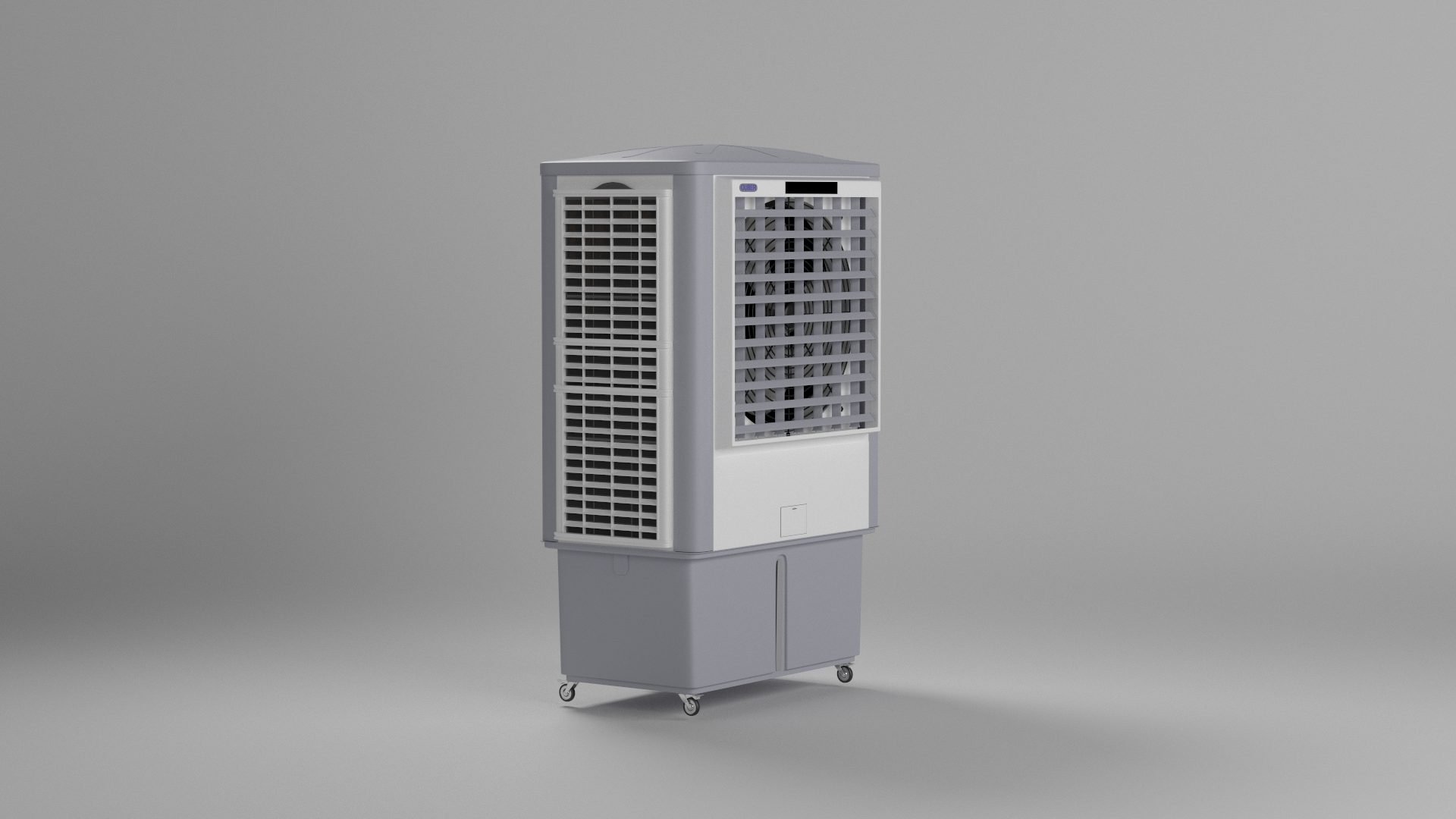

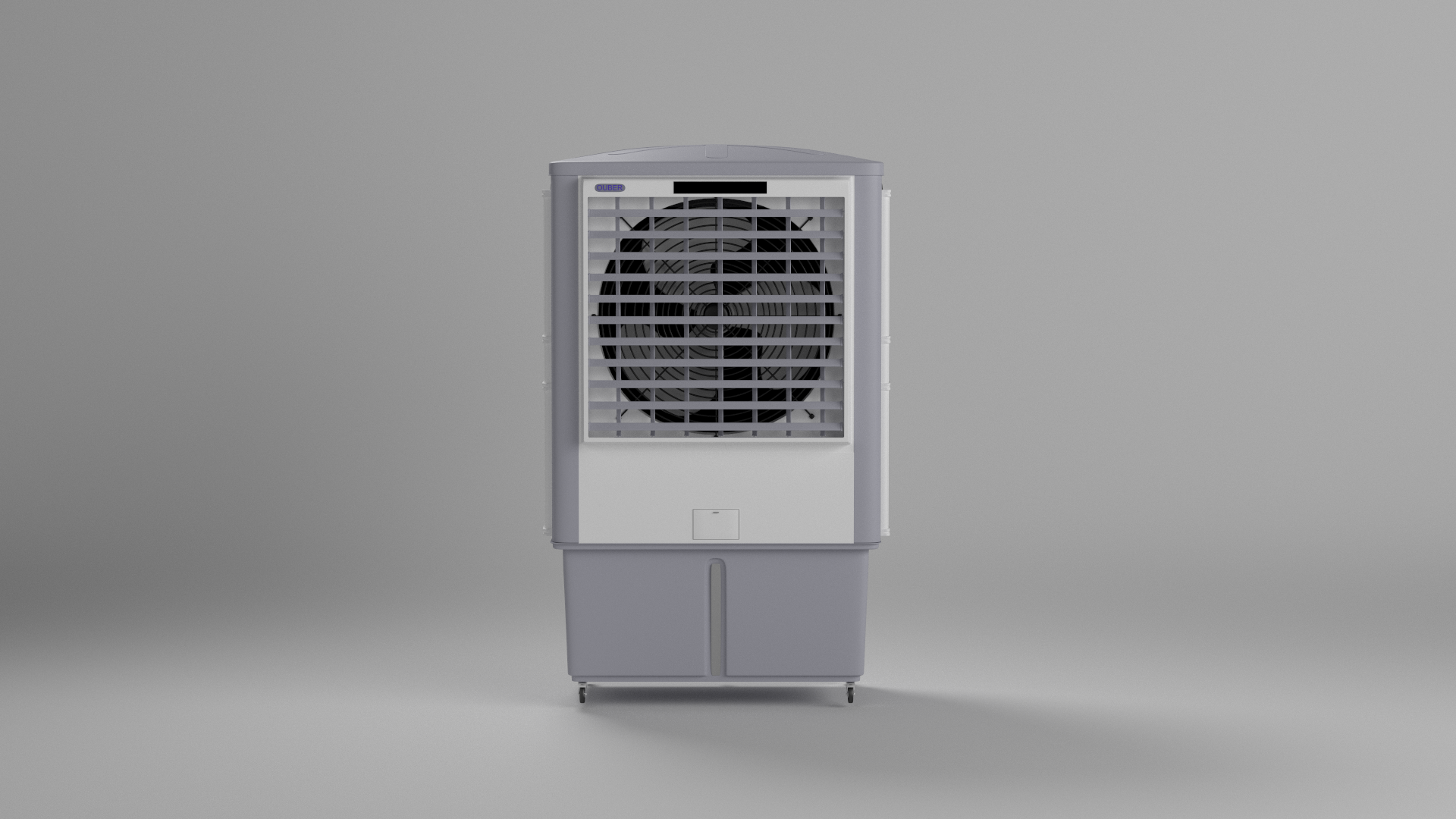

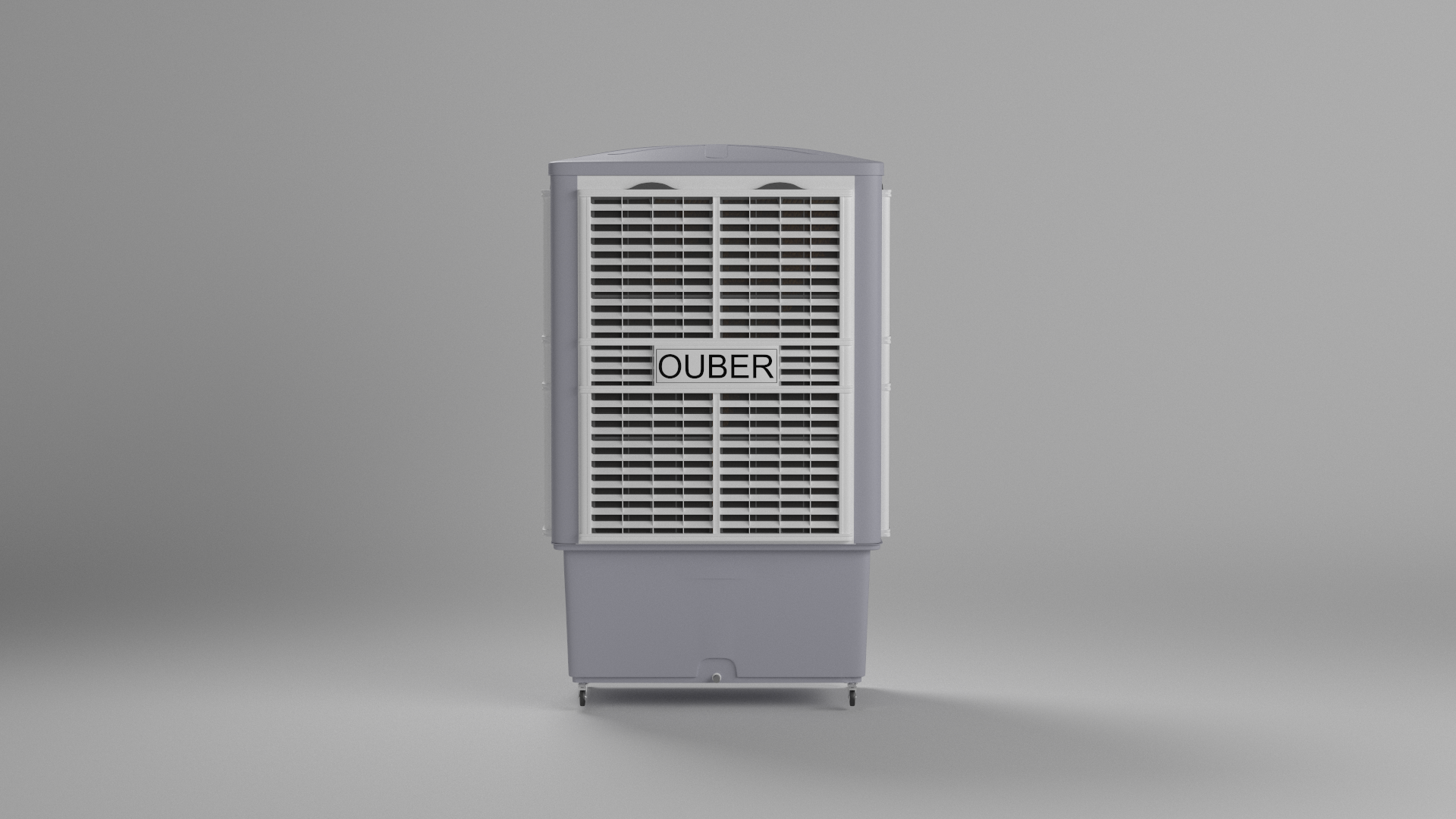

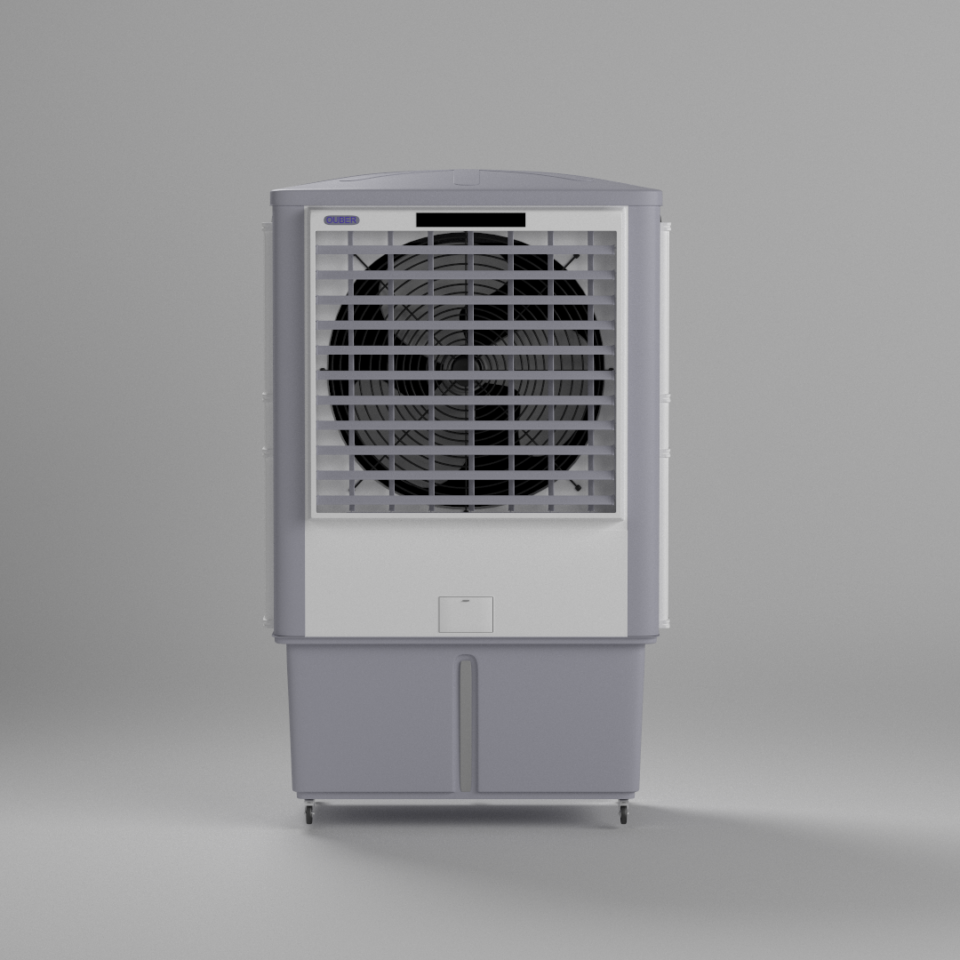

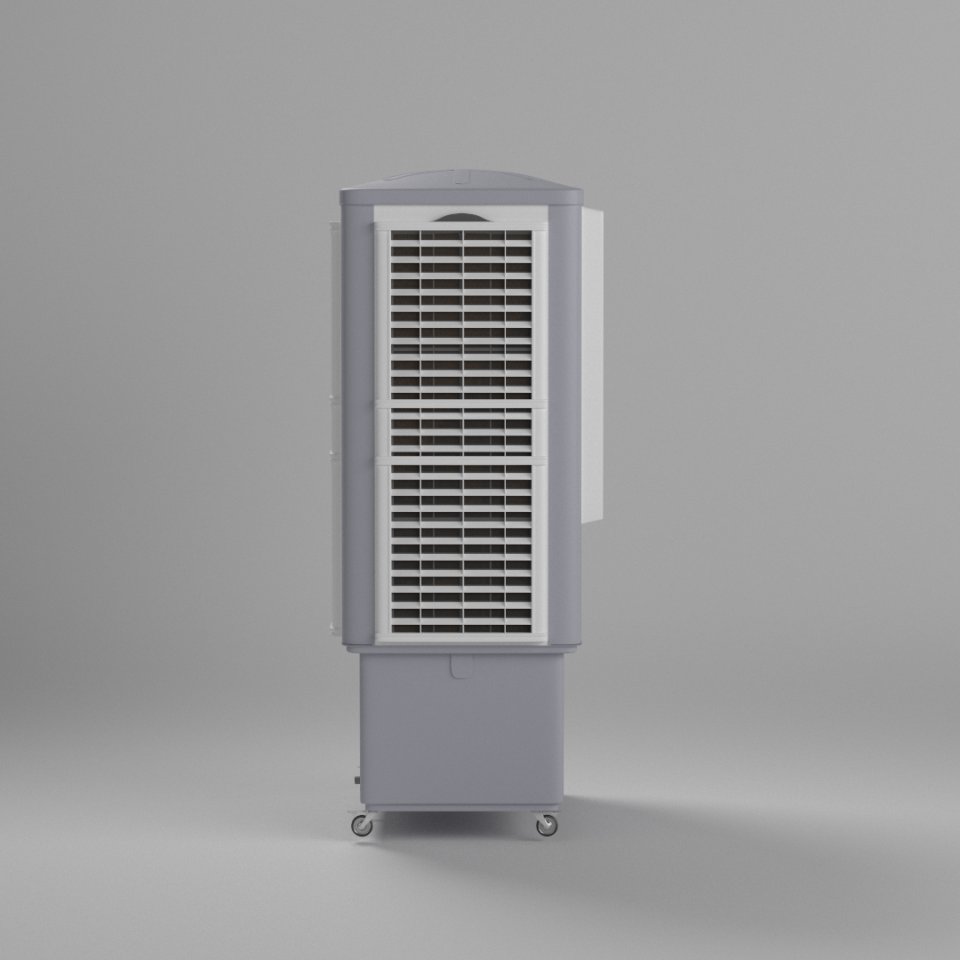

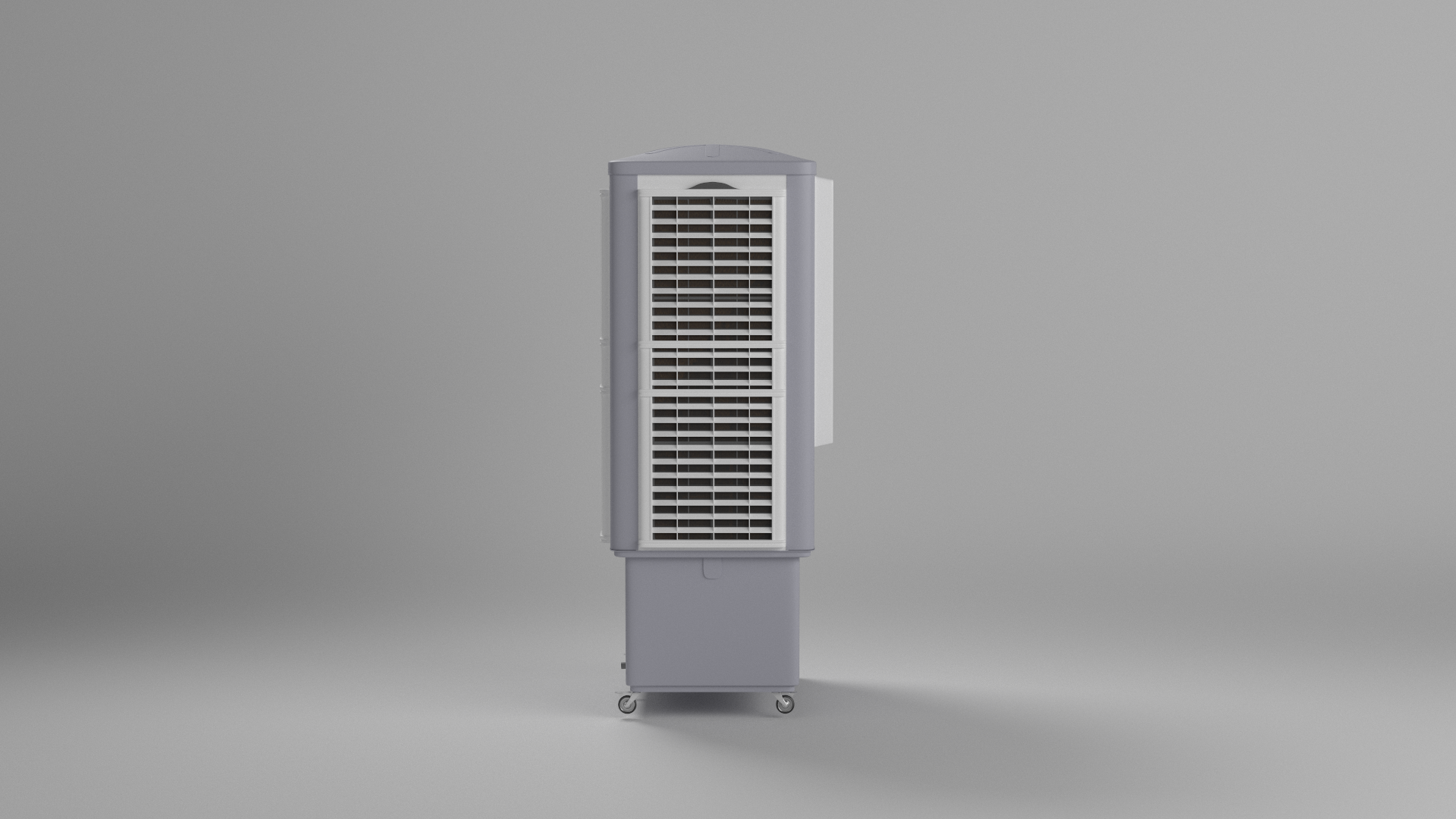

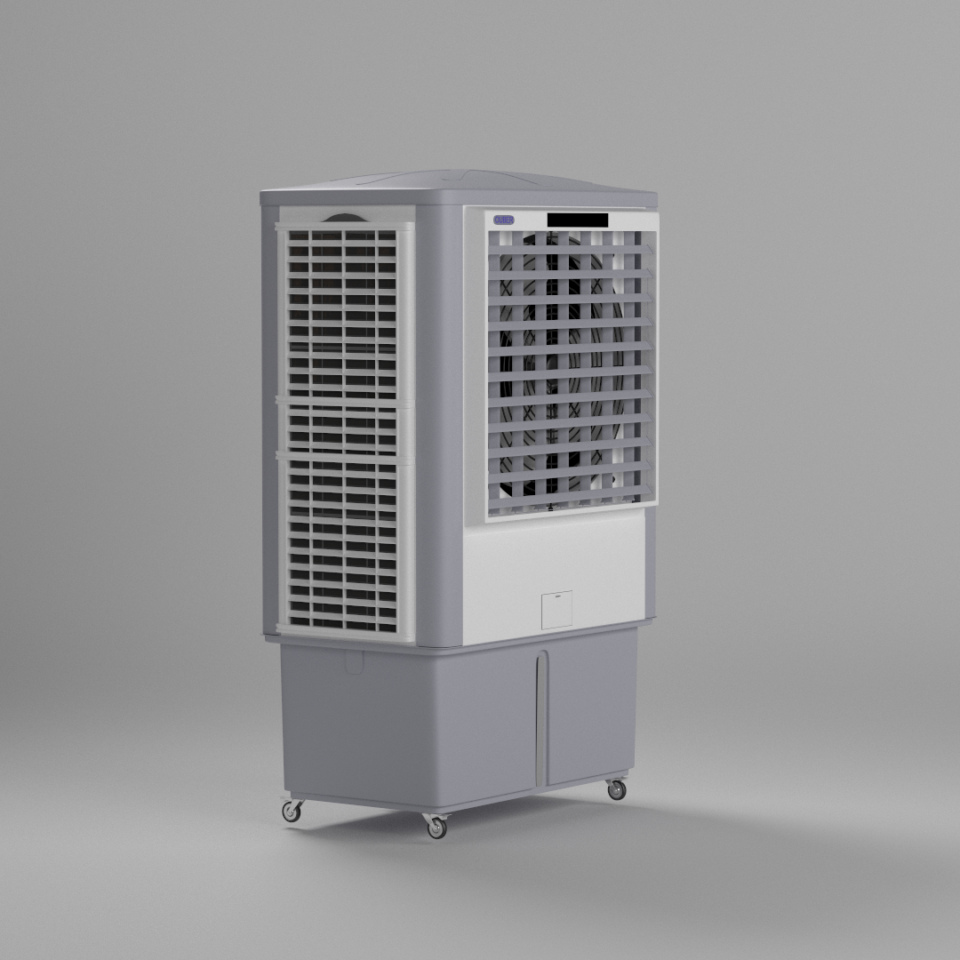

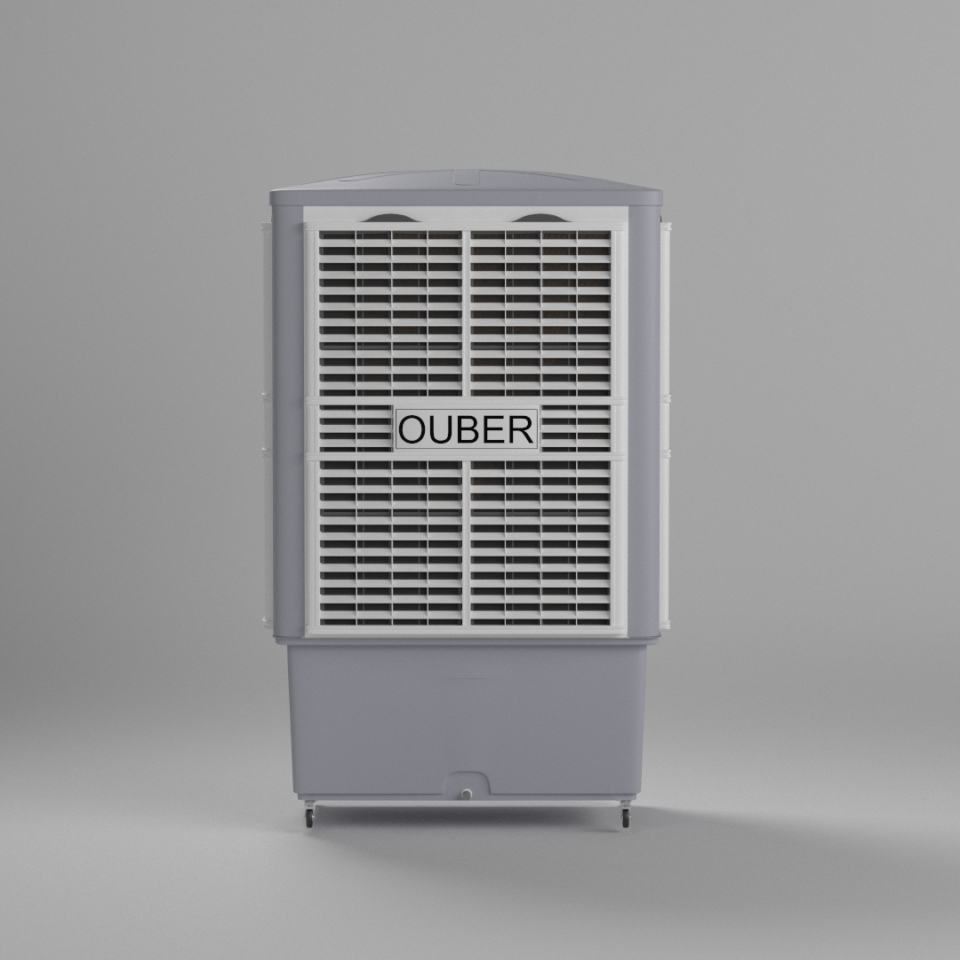

MAB15-DQ
50 speeds / Digital Touch panel / 175L big water tank / Nylon 3 blade / High quality silent fan / 100% new PP shell / Pure copper motor / Odor-free cooling pad / strong wind / energy saving / 5 meters Cable winding storage / 10-meter remote control / 1-8 hour Delayed Shutdown / quick pipe connect / Wide adjustable range / Water-drop wind bar / Dust-proof filter / Swivel caster with brake / Stainless steel screws / Evaporation rate >92 ％ / UV germicidal lamp + Circulating water pump(optional)
Specifications:
- Airflow : 15000 m3/h
- Power / Voltage : 0.6 Kw / 220V
- Fan Speed : 50 speeds
- Amps (A) : 0.1 – 2.7
- Wind Distance : 18
- Water Capacity : 175L
- Size (cm) : 106*65*167
- 20GP : 22(CBU)/36(SKD)
- 40HQ : 58(CBU)/94(SKD)
Additional information
| Weight | 56 kg |
|---|---|
| Dimensions | 106 × 65 × 167 cm |
| Airflow (m³/h) | 15000 |
| Area (m²) | 120 |
| Power (KW) | 0.6 |
| Product Type | Mobile type |
Specifications:
- Airflow : 15000 m3/h
- Power / Voltage : 0.6 Kw / 220V
- Fan Speed : 50 speeds
- Amps (A) : 0.1 – 2.7
- Wind Distance : 18
- Water Capacity : 175L
- Size (cm) : 106*65*167
- 20GP : 22(CBU)/36(SKD)
- 40HQ : 58(CBU)/94(SKD)
| Weight | 56 kg |
|---|---|
| Dimensions | 106 × 65 × 167 cm |
| Airflow (m³/h) | 15000 |
| Area (m²) | 120 |
| Power (KW) | 0.6 |
| Product Type | Mobile type |
