| Parameter/ Personalized setting | Particular configuration | |||
| Air outlet direction | Side | Fault code prompt |  |
|
| Engineering noise (dB) | ≤ 78 | Fully automatic operation mode |  |
|
| Net weight (KG) | 68 | Refrigeration setting | |
|
| Operating range (°C) | -20~55 | Ventilation setting | |
|
| Motor insulation | F/IP64 | Temperature Disply | |
|
| Voltage/frequency (V/Hz) | 220/50 | Manual cleaning settings | |
|
| Power (kW) | 1.5 | fully automatic temperature control speed function | |
|
| Controller/air volume mode | LCD panel/remote control/60-speed | 3D natural wind function | |
|
| Body length/width/height | 1080*1080*1270 | Child lock function | |
|
| Mounting foot size (mm ) | 970*970 | light off | |
|
| Dimensions of flanged outlet (mm) | 700*690 | 1-8 Hours time shut down | |
|
| Dimensions of non flanged air outlet (mm) | 670*670 | 10m infrared remote control | |
|
| Enter water pipe diameter (mm ) | Ф20 | Incoming call automatic recovery | |
|
| Blowdown diameter (mm ) | Ф32 | Temperature limit switch setting | |
|
| Storage tank volume (L) | 25 | moisture limit setting | |
|
| *Pipeline air supply distance (m) | 40 | Over / under voltage protection | |
|
| Direct air supply distance (m) | 28 | Sunshine resist PP machine cover (100%new material ) | |
|
| Evaporation rate (%) | ~92 | Three phase 25.4mm shaft copper motor | |
|
| Left and right auto swing setting | Need equip electric air diffuser | Galvanized centrifugal Wind turbine / volute | |
|
| Automatic blowdown setting (default 8 hours ) | 0~72 hour/time | AC three phase 220V asynchronous motor | |
|
| UV sterilization | after cooling | 3 nylon fan blades | |
|
| 10m remote control | |
4090 high effect cooling pads ( 3 sides air inlet ) | |
|
| Temperture and humidity sensor(optional) | |
3 nylon fan blades | |
|
| LCD screen control panel/Remote install pedestal | |
4 Nylon fan blades | |
|
| Floating water inlet valve | |
integrated water distribution component | |
|
| Manual water inlet | |
2 inch rotating caster with brake | |
|
| Barrier free drain pump | |
4 inch rotating caster with brake | |
|
| Ceramic shaft circulating water pump | |
BLDC motor | |
|
| 15m national standard signal wire | |
5090 high efficiency cooling pad | |
|
| 4m national standard power supply wire | |
Cooling pads protective cover | |
|
| Fan steel stainless support pole | |
PVC water pipe | |
|
| All stainless steel screws fasteners) | |
Open type water diversion plate | |
|
| Galvanize air duct flange (connector ) | |
Flame retardant electrical box | |
|
| Steel net flange suggest optional spare part) | |
Single phase input 220V inverter 60 speed (sealed) | |
|
| Steel stainless gauze element bracket (optional) | |
LCD screen control panel | |
|
| UV water processor (optional) | |
PP dustproof net (optional) | |
|
| Primary filter cotton frame (optional) | |
Motor limit electric current protection | |
|
| Water shortage protection of circulating water pump | |
Over temperature protection of circulating water pump | |
|
| Over / under voltage protection | |
Smart , wifi . ouber+ | |

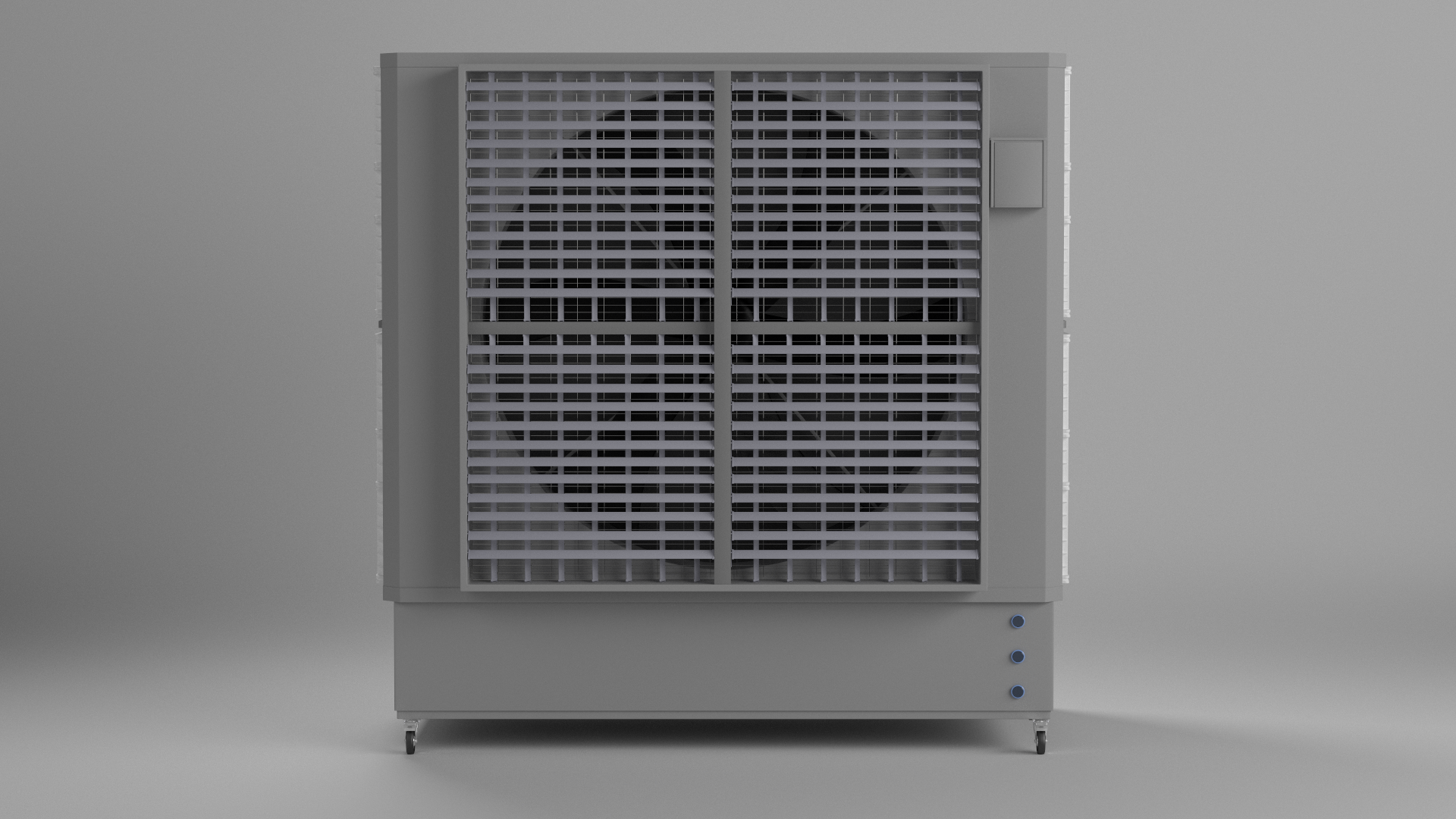

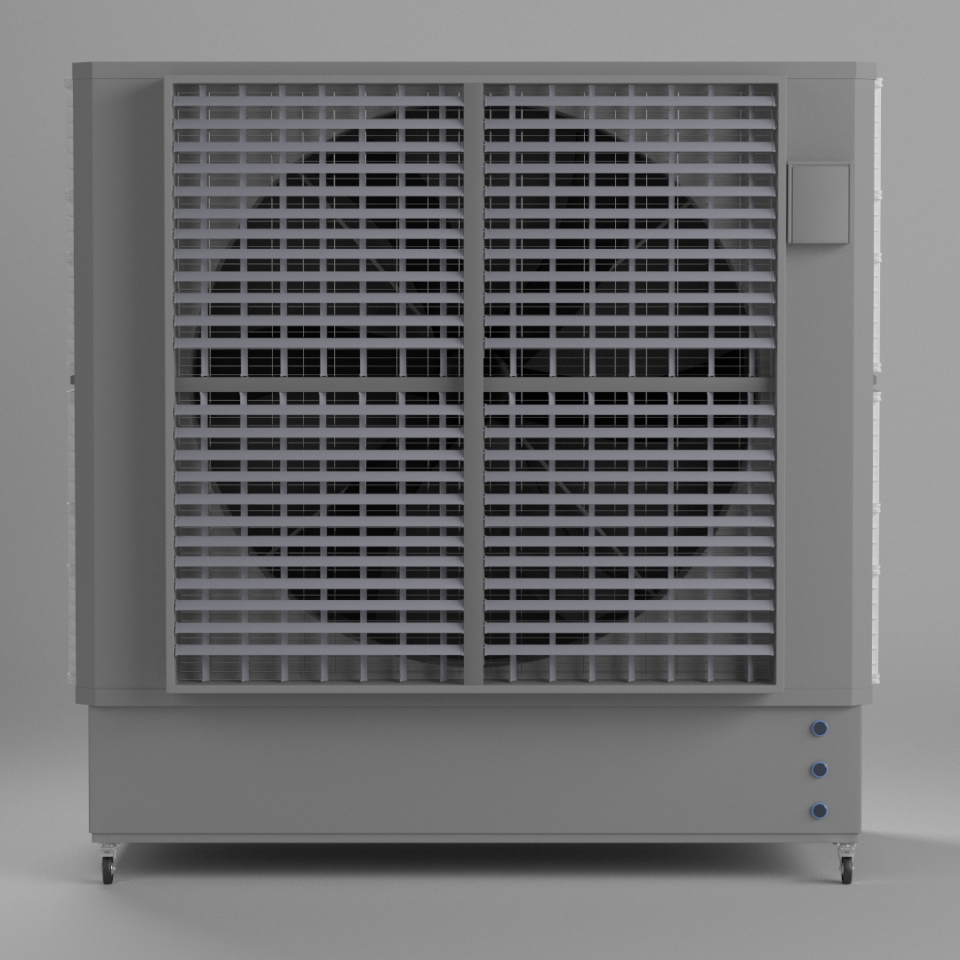

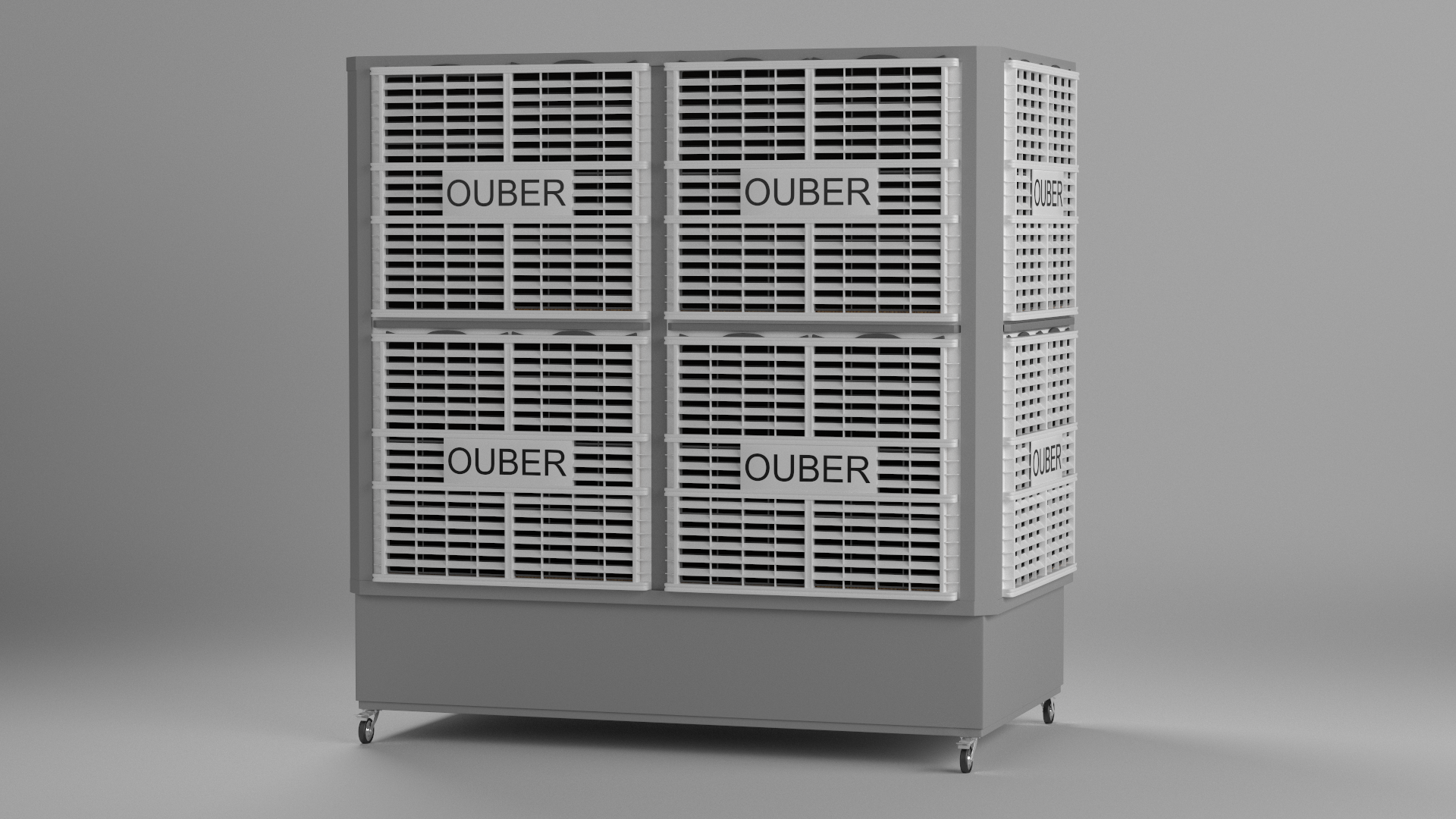

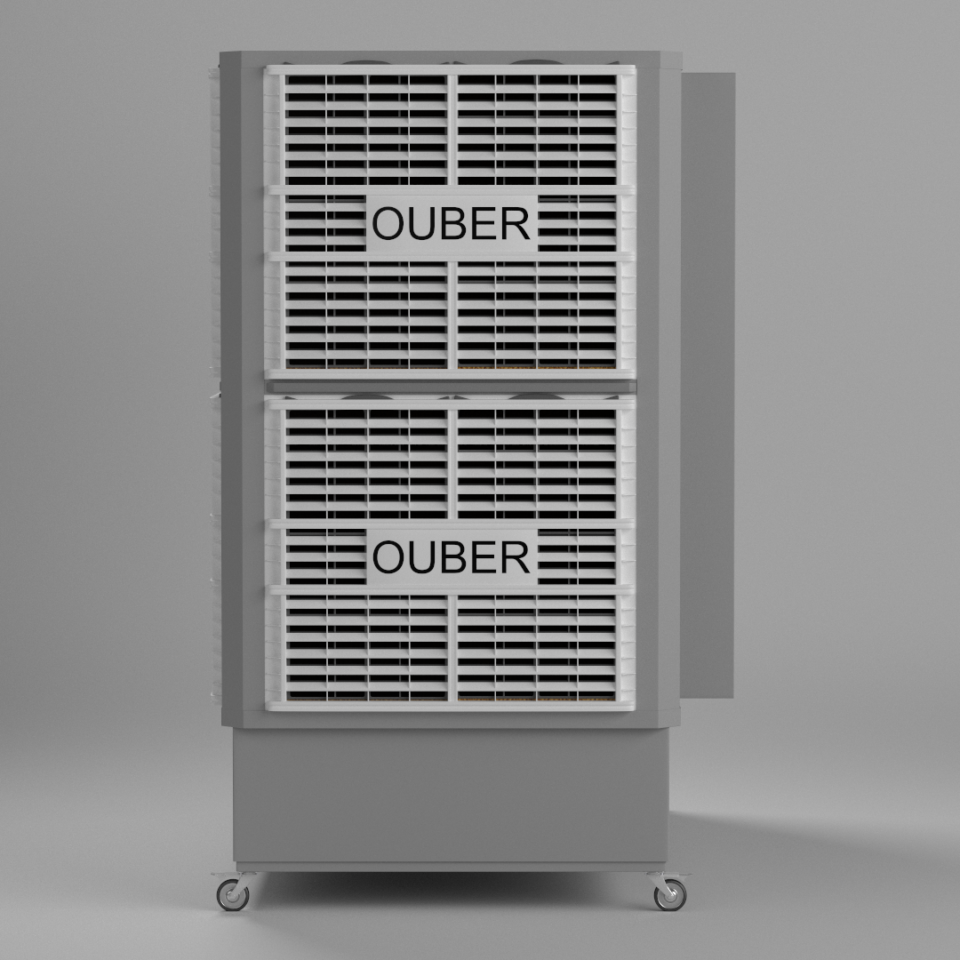

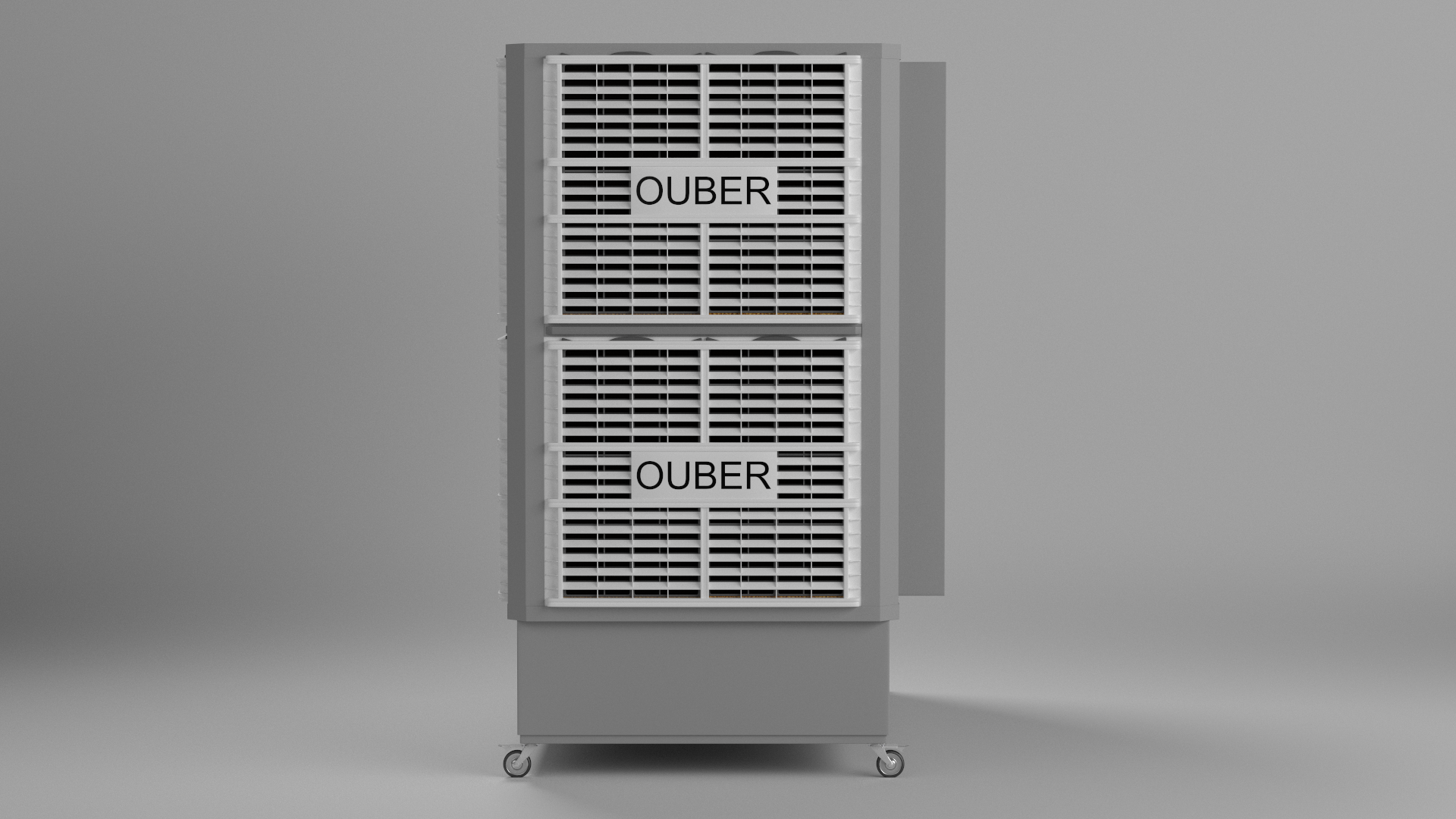

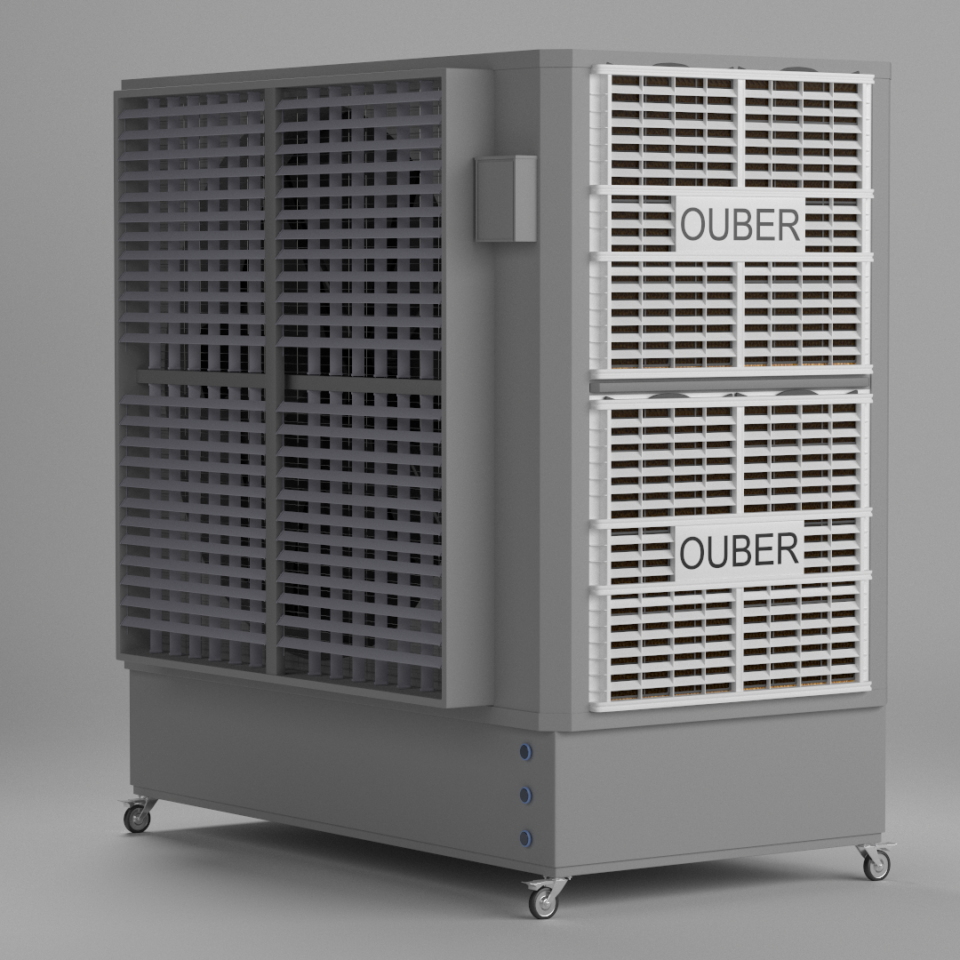

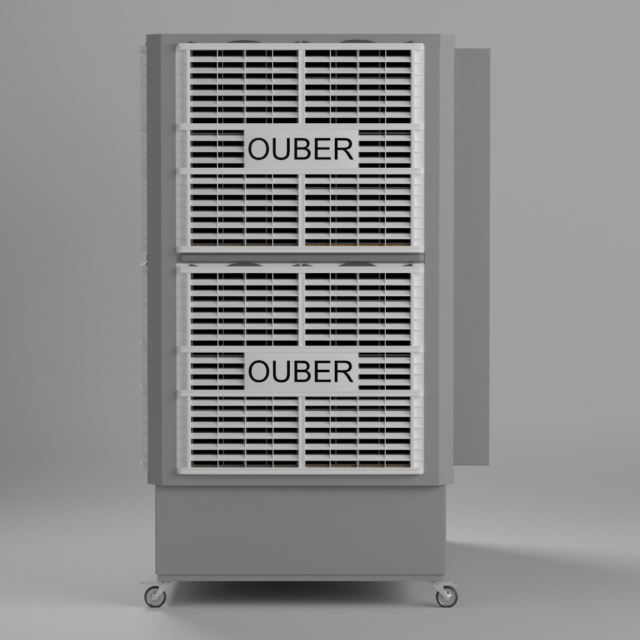

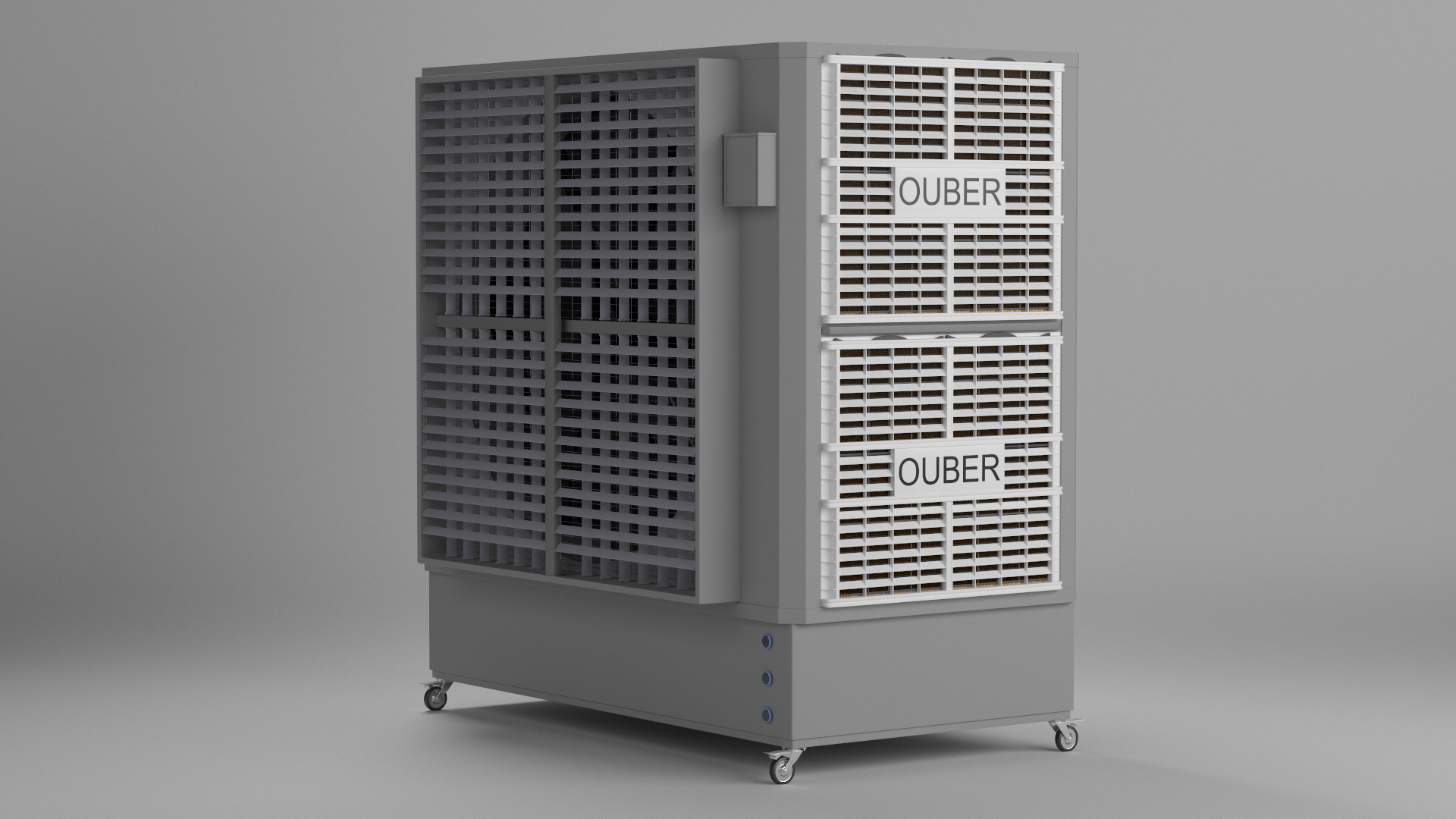

MAB46-IQ
8 speeds / LCD Touch panel / 450L big water tank / 6-blade axial fan / High quality silent fan / 100% new PP shell / Pure copper motor / Odor-free cooling pad / strong wind / energy saving / 5 meters Cable winding storage / 10-meter remote control / 1-8 hour Delayed Shutdown / Water-drop wind bar / Dust-proof filter / Swivel caster with brake / Stainless steel screws / Evaporation rate >92 ％ / UV germicidal lamp+ Circulating water pump(optional)
Specifications:
- Airflow : 46000 m3/h
- Power / Voltage : 1.1 Kw / 220V
- Fan Speed : 8 speeds
- Wind Distance : 17 m
- Water Capacity : 450L
- Size (cm) : 196*122.5*205
- 20GP : 4(CBU)
- 40HQ : 9(CBU)
Additional information
| Weight | 218 kg |
|---|---|
| Dimensions | 196 × 122,5 × 205 cm |
| Airflow | 46000 |
| Power (KW) | 1.1 |
| Area (m²) | 350 |
| Product Type | Mobile type |
Specifications:
- Airflow : 46000 m3/h
- Power / Voltage : 1.1 Kw / 220V
- Fan Speed : 8 speeds
- Wind Distance : 17 m
- Water Capacity : 450L
- Size (cm) : 196*122.5*205
- 20GP : 4(CBU)
- 40HQ : 9(CBU)
| Weight | 218 kg |
|---|---|
| Dimensions | 196 × 122,5 × 205 cm |
| Airflow | 46000 |
| Power (KW) | 1.1 |
| Area (m²) | 350 |
| Product Type | Mobile type |
